Trina Solar's 310W residential photovoltaic (PV) module integrates half-cut multi-busbar (MBB) technology, featuring an all-black aesthetic, high power generation efficiency, strong weather resistance, and a 25-year warranty, making it a cost-effective option for home PV systems.

Amid the growing popularity of clean energy, rooftop solar has become a favored solution for energy conservation and cost savings. Trina Solar's 310W (Peak Power Watts-PMAX) PV module is specifically designed for residential use, gaining widespread acclaim for its robust performance.

Adopting 120 monocrystalline silicon cells arranged in a 6×20 configuration, this module leverages half-cut MBB technology to significantly reduce resistance loss and enhance light reflection utilization. It can generate stable power even in low-light conditions, effectively increasing daily electricity output.

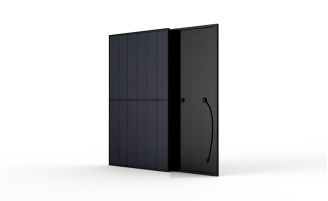

The all-black backsheet paired with thin wires gives the module a sleek appearance, allowing it to seamlessly blend with various rooftop styles. It not only preserves the building's aesthetic appeal but also adds a touch of technology, becoming an eye-catching feature on the rooftop.

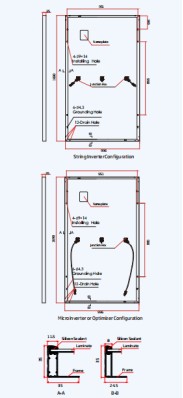

With exceptional adaptability, the module measures 1690×996×35mm and weighs only 18.0kg, exerting minimal pressure on rooftop load-bearing. It is easy to transport, handle, and install, suitable for both urban apartments and rural self-built houses.

Core Specification Table of 310W PV Module

The module also boasts excellent weather resistance, having passed multiple international authoritative certifications such as UL 61730 and IEC61215. It can withstand corrosion from salt spray, acid, sand, ammonia, and other substances, adapting to diverse climatic environments.

With a positive load-bearing capacity of 5400Pa and a negative load-bearing capacity of 2400Pa, it exhibits strong wind and pressure resistance, ensuring stable operation even in severe weather and providing reliable power generation for households.

The low temperature coefficient of Pmax (-0.36%/℃) means minimal power loss in high-temperature environments. Compared to ordinary modules, it can generate more electricity, further enhancing the returns of home PV systems.

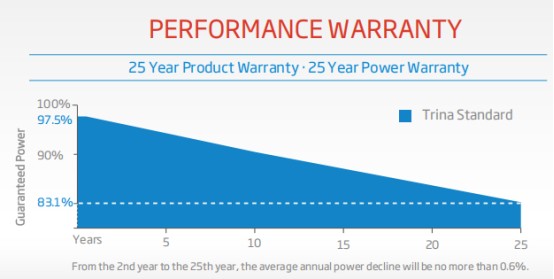

The 25-year product workmanship warranty and 25-year power warranty serve as strong endorsements of the product's reliability. From Year 2 to 25, the average annual power degradation of the module does not exceed 0.6%, and it can still maintain 83.1% of its initial power after 25 years.

Such a long-term warranty eliminates concerns about subsequent maintenance costs for users. A single installation ensures stable clean energy returns for decades.

Practical Application Cases

Case 1: Rural Self-Built House Project in Southern China

A rural user in Zhejiang installed 15 Trina Solar 310W modules with a total installed capacity of 4.65kW on a rooftop of approximately 50㎡.

The region features heavy rainfall and high temperatures in summer. Thanks to the module's low temperature coefficient (-0.36%/℃) and IP68 waterproof junction box, it maintains stable power generation even in high-temperature and rainy conditions.

According to the user's feedback, the average monthly power generation is about 420 kWh, covering 80% of the household's electricity demand. It saves nearly 3,000 yuan in electricity bills annually, with an expected payback period of 8 years.

Case 2: Urban Apartment Rooftop Project in Northern China

A user of a top-floor apartment in a community in Beijing installed 8 310W modules on a 30㎡ rooftop, with a total installed capacity of 2.48kW.

The low temperature in winter can reach -15℃, but the module's operating temperature range covers -40~+85℃, ensuring no performance degradation in low-temperature environments.

Coupled with the module's excellent low-light performance, it can still generate about 200 kWh of electricity stably per month even with short daylight hours in northern winters, effectively alleviating the pressure of heating electricity consumption in winter.

Frequently Asked Questions (FAQs)

1. What size of home rooftop is suitable for installing 310W modules?

Each module has a size of 1690×996mm (approximately 1.68㎡). Generally, 5-15 modules can meet the needs of most households, adapting to rooftop areas of 10-25㎡. The specific quantity can be adjusted according to electricity demand.

2. Can the module's wind and pressure resistance handle typhoons and blizzards?

With a positive load-bearing capacity of 5400Pa and a negative load-bearing capacity of 2400Pa, it is equivalent to being able to withstand typhoons of magnitude 12 and heavy snow pressure, easily coping with extreme weather in most regions.

3. How is the 25-year power warranty specifically fulfilled?

If the annual degradation of the module exceeds the standard of 0.6% during the warranty period, users can contact Trina Solar's official after-sales service and enjoy free repair or replacement services with installation records and test reports.

4. How compatible is the module with inverters on the market?

With a maximum system voltage of 1000V DC, it is compatible with mainstream residential string inverters and microinverters. Simply inform the inverter manufacturer of the module parameters during purchase to achieve perfect matching.

Founded in 1997, Trina Solar is a world-leading total solution provider for solar energy, with products sold in more than 100 countries and regions worldwide. Choosing the 310W PV module not only delivers efficient and stable power generation performance but also provides high-quality services and after-sales support backed by the brand, making home PV investment more reliable and cost-effective.
