Buy Jinko Solar Panels 605w Tiger Neo N-Type Bifacial Dual Glass Module
Buy Jinko Solar Panels 605w Tiger Neo N-Type Bifacial Dual Glass Module

For solar energy traders, project developers, and system integrators seeking high-efficiency, reliable photovoltaic solutions, the Jinko Tiger Neo N-type 78HL4-BDV 605W bifacial dual glass module stands out as a cost-effective and durable option. Engineered with advanced N-type technology and innovative design features, this module delivers exceptional performance while adhering to strict industry certifications and quality standards.

boris@guanjisolar.com
+86 18961687918

Product Details

For solar energy traders, project developers, and system integrators seeking high-efficiency, reliable photovoltaic solutions, the Jinko Tiger Neo N-type 78HL4-BDV 605W bifacial dual glass module stands out as a cost-effective and durable option. Engineered with advanced N-type technology and innovative design features, this module delivers exceptional performance while adhering to strict industry certifications and quality standards.

Core Product Features

The 605W Jinko solar panel integrates cutting-edge technologies to maximize power output and longevity, making it ideal for utility-scale and commercial solar projects:
  1. SMBB & Hot 2.0 TechnologySMBB (Super Multi Busbar) technology enhances light trapping and current collection, boosting power output and operational reliability. Combined with Hot 2.0 technology, the N-type module achieves lower LID (Light-Induced Degradation) and LeTID (Light and Elevated Temperature-Induced Degradation), ensuring consistent performance over time.
  2. Superior PID ResistanceOptimized mass-production processes and strict material control enable excellent anti-PID (Potential Induced Degradation) performance, preventing performance losses caused by voltage-induced ion migration.
  3. Enhanced Mechanical LoadCertified to withstand wind loads of 2400 Pascal and snow loads of 5400 Pascal, the module maintains structural integrity in harsh weather conditions, reducing maintenance risks for outdoor installations.

  4. Bifacial Power GainWith a referential bifacial factor of 80±5%, the module can capture rear-side sunlight, delivering additional power gains (5%-25% depending on albedo) to lower LCOE (Levelized Cost of Energy) and improve project IRR (Internal Rate of Return).


605W Module Technical Specifications

Mechanical Characteristics

ParameterSpecification
Cell TypeN-type Mono-crystalline
No. of Cells156 (2×78)
Dimensions2465×1134×30mm (97.05×44.65×1.18 inch) (tolerance: ±2mm for length/width, ±1mm for height)
Weight34.6kg (76.38 Ibs)
Front Glass2.0mm, Anti-Reflection Coating
Back Glass2.0mm, Heat Strengthened Glass
FrameAnodized Aluminium Alloy
Junction BoxIP68 Rated
Output Cables(+): 400mm, (-): 200mm (customizable length), TUV 1×4.0mm²

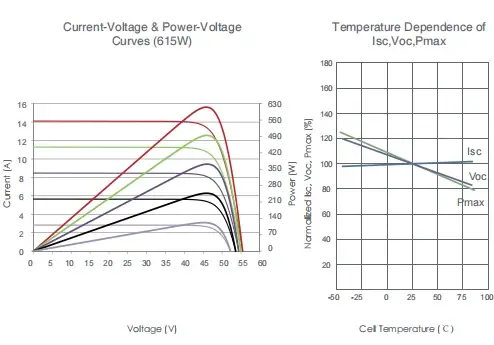

Electrical Performance (STC & NOCT)

Testing ConditionSTC (1000W/m², 25℃, AM1.5)NOCT (800W/m², 20℃, 1m/s wind)
Maximum Power (Pmax)605Wp455Wp
Maximum Power Voltage (Vmp)45.42V42.23V
Maximum Power Current (Imp)13.32A10.77A
Open-circuit Voltage (Voc)55.17V52.41V
Short-circuit Current (Isc)13.95A11.26A
Module Efficiency21.64%-
Power Tolerance0~+3%-

Bifacial Output (Rear-Side Power Gain)

Rear-Side Power GainMaximum Power (Pmax)Module Efficiency (STC)
5%635Wp22.73%
15%696Wp24.89%
25%756Wp27.05%

Warranty & Packaging

Warranty Coverage

  • 12-Year Product Warranty: Covers manufacturing defects and workmanship issues.
  • 30-Year Linear Power Warranty: Guarantees 0.40% annual power degradation, ensuring long-term energy yield stability for project investors.

Packaging Configuration

The module is packaged for efficient global shipping:
  • 36pcs per pallet, 72pcs per stack (two pallets = one stack)
  • 576pcs per 40'HQ container, optimizing freight costs for bulk orders.

Image 4: Packaging Layout Diagram (Source: Jinko 605-625W N-Type datasheet, Packaging Configuration section)


The Jinko 605W N-type bifacial dual glass module combines high power output, robust reliability, and bifacial flexibility to meet the demands of diverse solar projects. With industry-leading certifications (IEC61215:2016, IEC61730:2016) and ISO management system compliance, it offers a trusted solution for buyers prioritizing performance and long-term value.

Purchase link:Supply Jinko Solar Tiger Neo Bifacia 600W 605W 610W 615W 620W 625W Bifacial Solar Panels-JA TECH CO LTD

FAQs

What is the conversion efficiency of your company's photovoltaic modules?

The efficiency of mass-produced TOPCon components reached 24.7% (industry average 23.5%), and the efficiency of laboratory N-type batteries exceeded 26.1% (T Ü V certification)
Double sided component back gain of 30%+, suitable for high reflection ground scenes

How does the component perform in extreme climates such as deserts and extreme cold?

Working in a wide temperature range of -40 ℃~85 ℃, the Norwegian polar project measured that the power generation exceeded the design value by 103% at -30 ℃
Desert environment anti UV aging certification, with an annual attenuation rate of only 0.45% (industry average of 0.8%)

Do you provide customized design solutions for the project? How long is the response cycle?

Provide free system design services (including shadow analysis and IRR calculation)
Standard solution output within 48 hours, complex scenarios (such as offshore microgrids) within 72 hours

Do you support sample testing?

Provide 2 free samples with third-party testing reports attached
